TDRSS lightcurve for Trigger=375409

Notes:

• 1) None of the TDRSS light curves are background subtracted.

GCN BAT Position Notice

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 09 Nov 09 21:49:16 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     375409,   Seg_Num: 0
GRB_RA:          112.717d {+07h 30m 52s} (J2000),
                 112.773d {+07h 31m 06s} (current),
                 112.430d {+07h 29m 43s} (1950)
GRB_DEC:         -54.080d {-54d 04' 48"} (J2000),
                 -54.102d {-54d 06' 05"} (current),
                 -53.974d {-53d 58' 24"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       631 [cnts]    Image_Peak=63 [image_cnts]
TRIGGER_DUR:     0.064 [sec]
TRIGGER_INDEX:   10427     E_range: 50-350 keV
BKG_INTEN:       24341 [cnts]
BKG_TIME:        78530.75 SOD {21:48:50.75} UT
BKG_DUR:         8 [sec]
GRB_DATE:        15144 TJD;   313 DOY;   09/11/09
GRB_TIME:        78542.91 SOD {21:49:02.91} UT
GRB_PHI:         -174.91 [deg]
GRB_THETA:        31.95 [deg]
SOLN_STATUS:     0x3
RATE_SIGNIF:     27.78 [sigma]
IMAGE_SIGNIF:    7.05 [sigma]
MERIT_PARAMS:     +1  +0  +0  -4  +3  -3  +0  +0  -2  +0
SUN_POSTN:       225.16d {+15h 00m 39s}  -17.09d {-17d 05' 18"}
SUN_DIST:         88.59 [deg]   Sun_angle= 7.5 [hr] (West of Sun)
MOON_POSTN:      142.44d {+09h 29m 45s}  +12.37d {+12d 21' 57"}
MOON_DIST:        71.08 [deg]
MOON_ILLUM:      47 [%]
GAL_COORDS:      265.91,-16.25 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      142.42,-73.39 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred at longitude,latitude = 119.38,-12.47 [deg].

GCN BAT Lightcurve Notice

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Mon 09 Nov 09 22:06:10 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     375409,   Seg_Num: 0
GRB_RA:          112.717d {+07h 30m 52s} (J2000),
                 112.773d {+07h 31m 06s} (current),
                 112.430d {+07h 29m 43s} (1950)
GRB_DEC:         -54.080d {-54d 04' 48"} (J2000),
                 -54.102d {-54d 06' 05"} (current),
                 -53.974d {-53d 58' 24"} (1950)
GRB_DATE:        15144 TJD;   313 DOY;   09/11/09
GRB_TIME:        78543.15 SOD {21:49:03.15} UT
TRIGGER_INDEX:   10427
GRB_PHI:         -174.91 [deg]
GRB_THETA:        31.95 [deg]
DELTA_TIME:      39.00 [sec]
TRIGGER_DUR:     0.064 [sec]
SOLN_STATUS:     0x3
RATE_SIGNIF:     27.78 [sigma]
IMAGE_SIGNIF:    7.05 [sigma]
LC_URL:          sw00375409000msb.lc

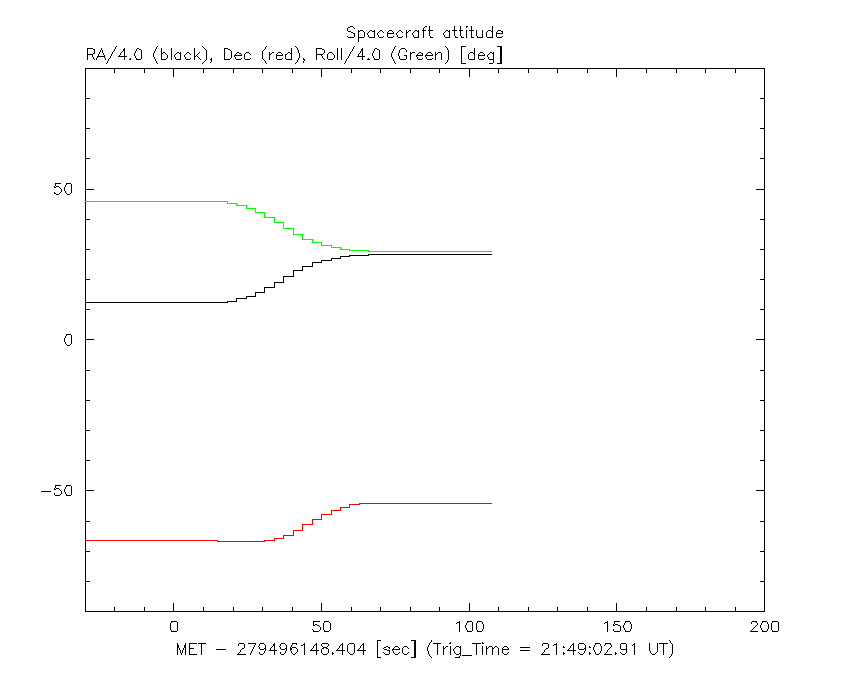

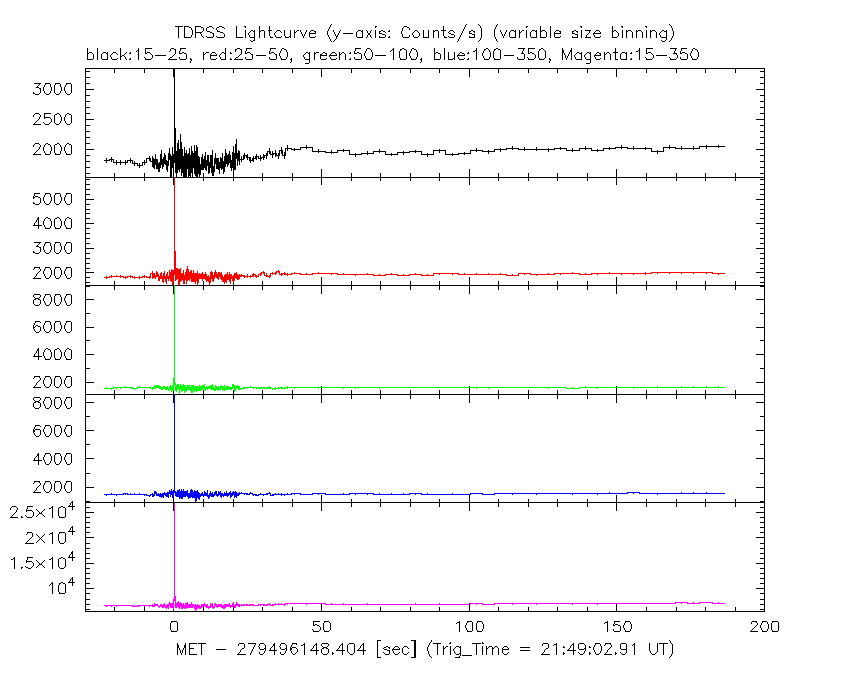

Initial TDRSS lightcurve and spacecraft attitude plot

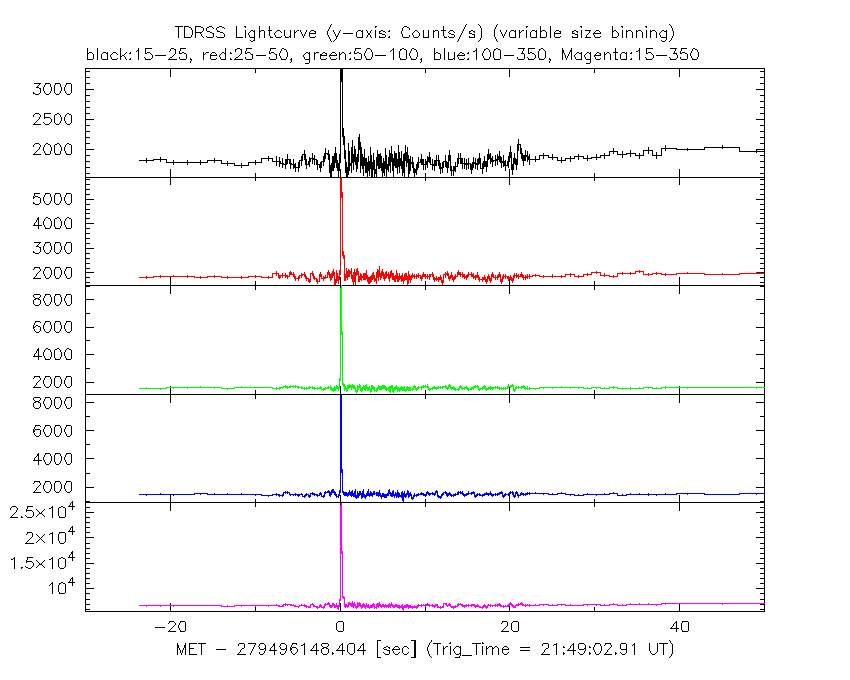

TDRSS lightcurve from T0-30 to T0+50 (zoom in)

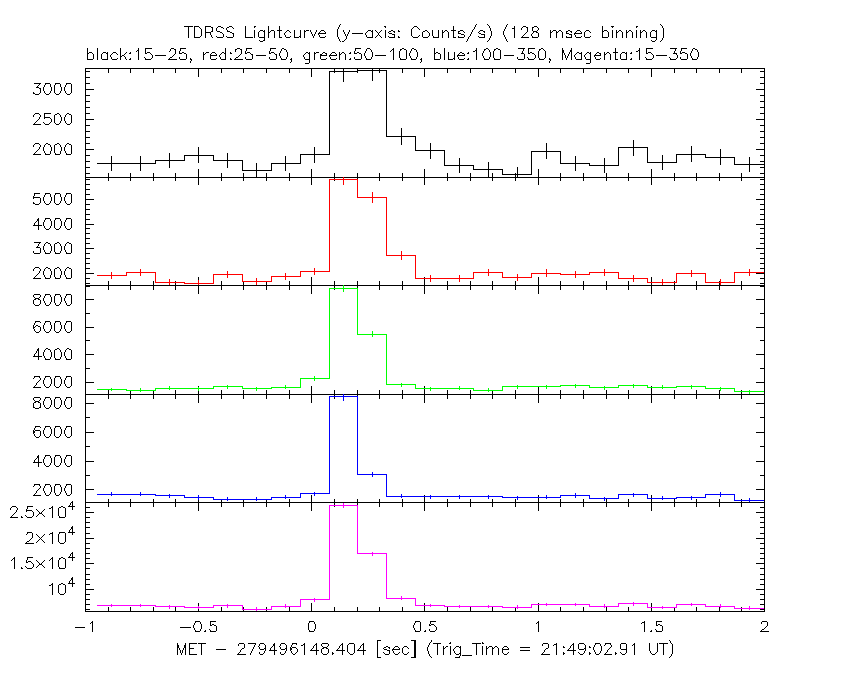

TDRSS light curve from T0-1 to T0+2 (More zoom in)

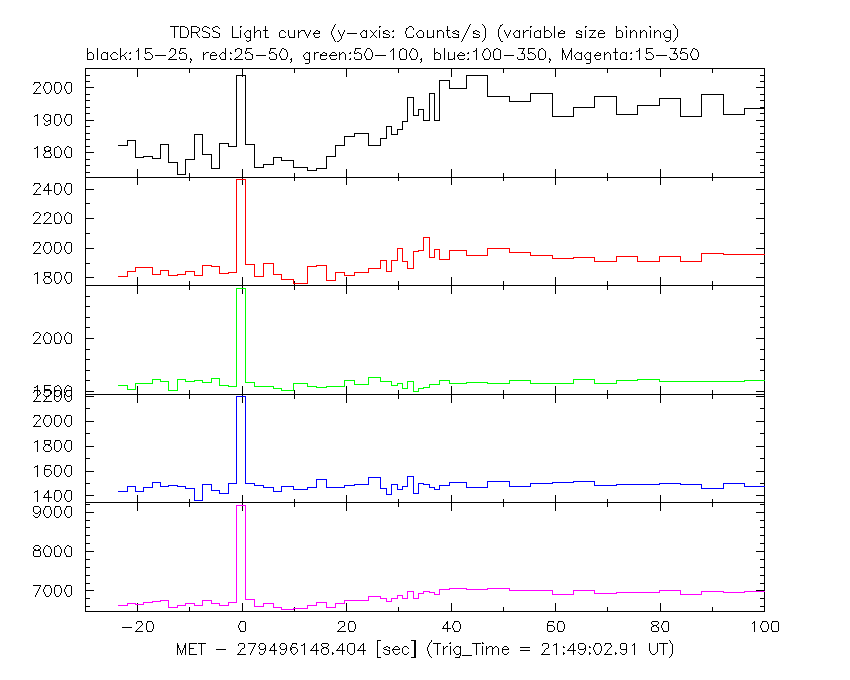

1.6s binned TDRSS light curve

Extended TDRSS light curve and spacecraft attitude plot(s)

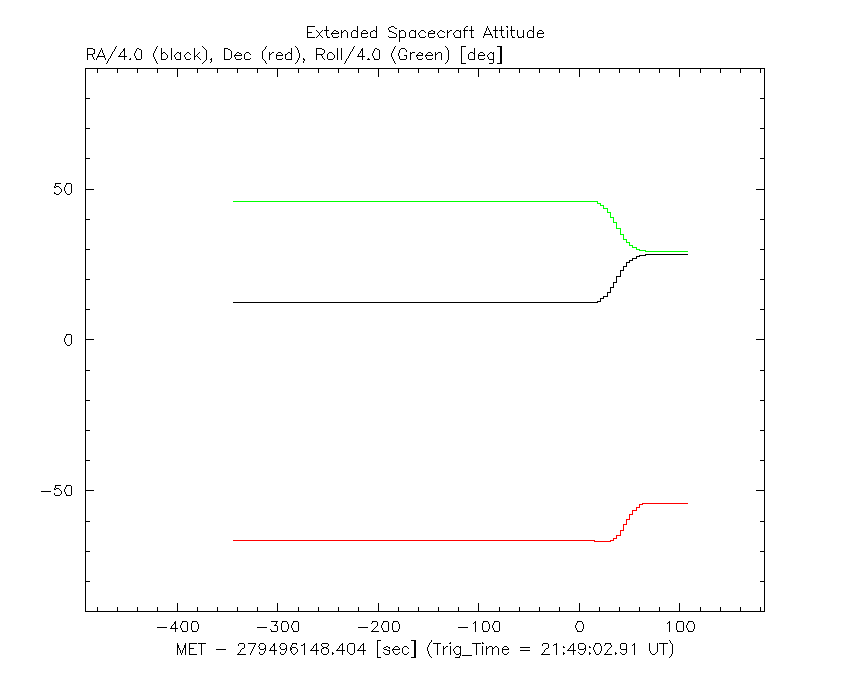

Extended TDRSS lc No.1

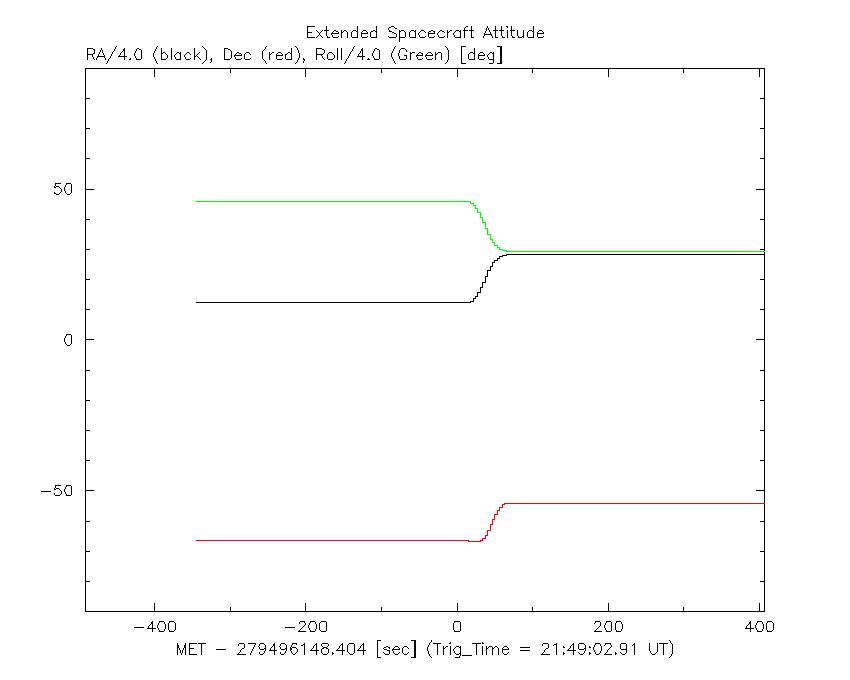

Extended TDRSS lc No.2

Extended TDRSS lc No.3

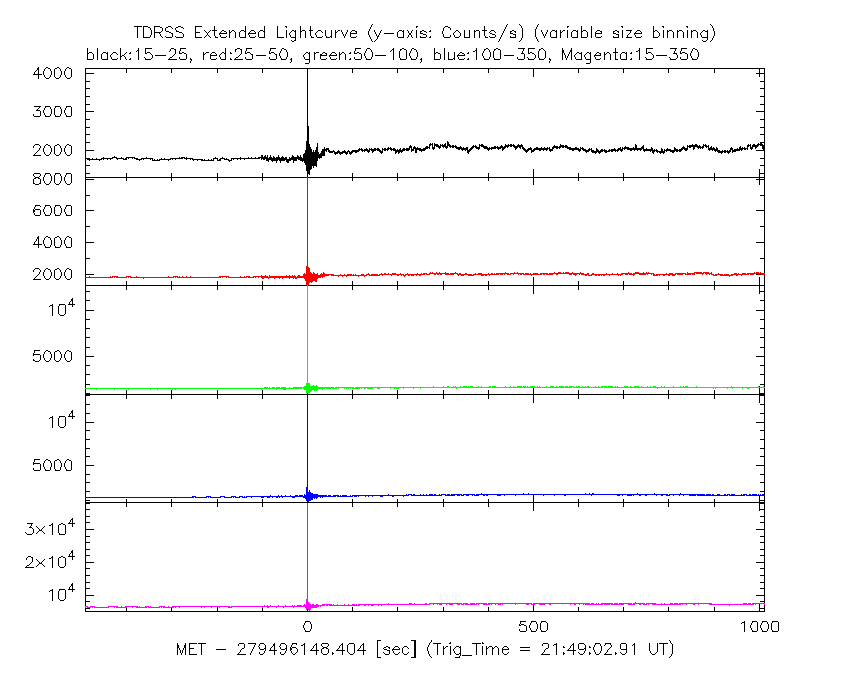

Extended TDRSS lc No.4

Plot creation:
Mon Nov  9 17:06:44 EST 2009
