TDRSS lightcurve for Trigger=371210

Notes:

• 1) None of the TDRSS light curves are background subtracted.

GCN BAT Position Notice

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Wed 30 Sep 09 18:32:37 UT
NOTICE_TYPE:     Swift-BAT GRB Position
TRIGGER_NUM:     371210,   Seg_Num: 0
GRB_RA:          267.767d {+17h 51m 04s} (J2000),
                 267.925d {+17h 51m 42s} (current),
                 266.960d {+17h 47m 50s} (1950)
GRB_DEC:         -30.979d {-30d 58' 42"} (J2000),
                 -30.981d {-30d 58' 50"} (current),
                 -30.966d {-30d 57' 56"} (1950)
GRB_ERROR:       3.00 [arcmin radius, statistical only]
GRB_INTEN:       16016 [cnts]    Image_Peak=360 [image_cnts]
TRIGGER_DUR:     4.096 [sec]
TRIGGER_INDEX:   280     E_range: 15-25 keV
BKG_INTEN:       139107 [cnts]
BKG_TIME:        66658.86 SOD {18:30:58.86} UT
BKG_DUR:         40 [sec]
GRB_DATE:        15104 TJD;   273 DOY;   09/09/30
GRB_TIME:        66716.53 SOD {18:31:56.53} UT
GRB_PHI:         174.40 [deg]
GRB_THETA:         0.04 [deg]
SOLN_STATUS:     0x43
RATE_SIGNIF:     13.26 [sigma]
IMAGE_SIGNIF:    7.68 [sigma]
MERIT_PARAMS:     +1  +0  +0  +2  +0  -2  +0  +1 -16  +0
SUN_POSTN:       187.09d {+12h 28m 23s}   -3.06d {-03d 03' 51"}
SUN_DIST:         80.56 [deg]   Sun_angle= -5.4 [hr] (East of Sun)
MOON_POSTN:      328.92d {+21h 55m 40s}  -10.03d {-10d 01' 44"}
MOON_DIST:        60.06 [deg]
MOON_ILLUM:      88 [%]
GAL_COORDS:      358.86, -2.06 [deg] galactic lon,lat of the burst (or transient)
ECL_COORDS:      268.07, -7.55 [deg] ecliptic lon,lat of the burst (or transient)
COMMENTS:        SWIFT-BAT GRB Coordinates.
COMMENTS:        This is a rate trigger.
COMMENTS:        A point_source was found.
COMMENTS:        This does not match any source in the on-board catalog.
COMMENTS:        This does not match any source in the ground catalog.
COMMENTS:        This is a GRB.
COMMENTS:        This trigger occurred during a high background rate interval.
COMMENTS:        This trigger occurred at longitude,latitude = 319.70,16.51 [deg].

GCN BAT Lightcurve Notice

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Wed 30 Sep 09 19:07:02 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     371210,   Seg_Num: 0
GRB_RA:          267.767d {+17h 51m 04s} (J2000),
                 267.925d {+17h 51m 42s} (current),
                 266.960d {+17h 47m 50s} (1950)
GRB_DEC:         -30.979d {-30d 58' 42"} (J2000),
                 -30.981d {-30d 58' 50"} (current),
                 -30.966d {-30d 57' 56"} (1950)
GRB_DATE:        15104 TJD;   273 DOY;   09/09/30
GRB_TIME:        66716.53 SOD {18:31:56.53} UT
TRIGGER_INDEX:   280
GRB_PHI:         174.40 [deg]
GRB_THETA:         0.04 [deg]
DELTA_TIME:      -5.00 [sec]
TRIGGER_DUR:     4.096 [sec]
SOLN_STATUS:     0x43
RATE_SIGNIF:     13.26 [sigma]
IMAGE_SIGNIF:    7.68 [sigma]
LC_URL:          sw00371210000msb.lc

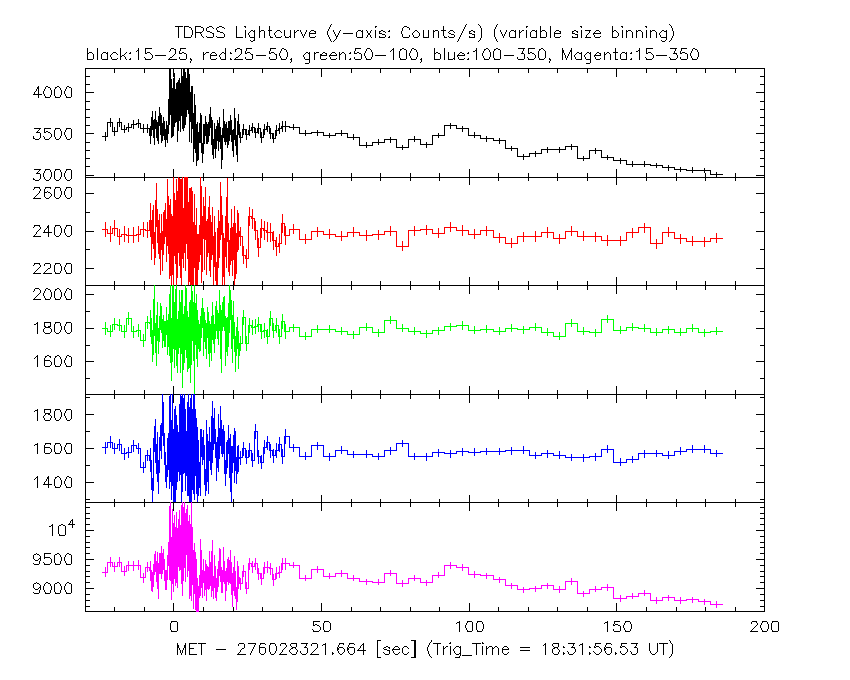

Initial TDRSS lightcurve and spacecraft attitude plot

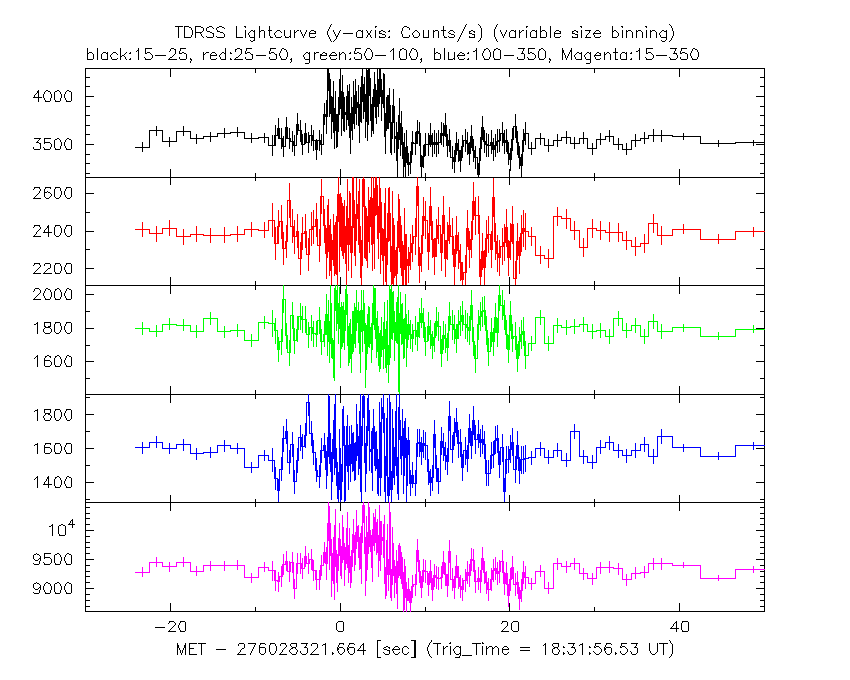

TDRSS lightcurve from T0-30 to T0+50 (zoom in)

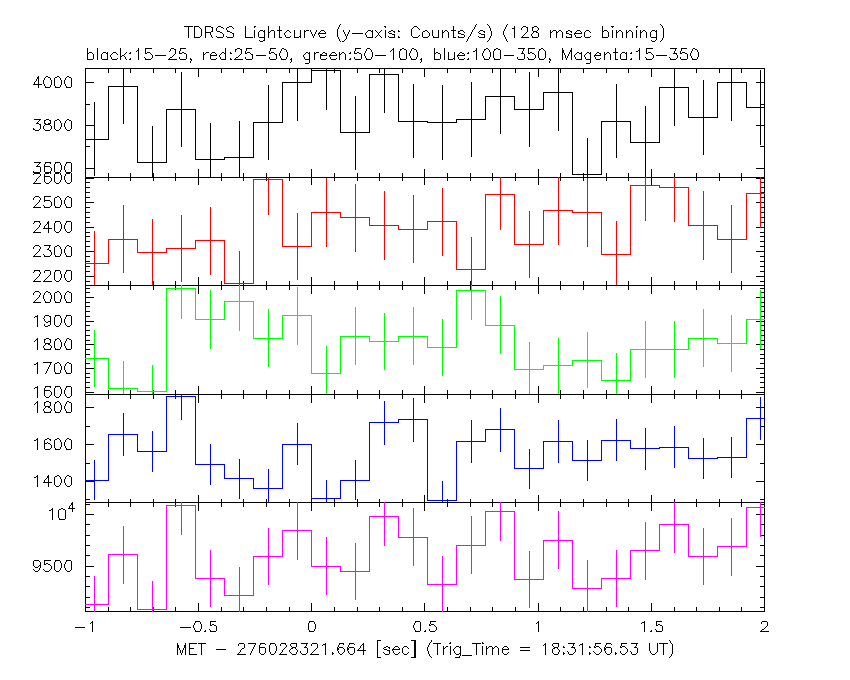

TDRSS light curve from T0-1 to T0+2 (More zoom in)

1.6s binned TDRSS light curve

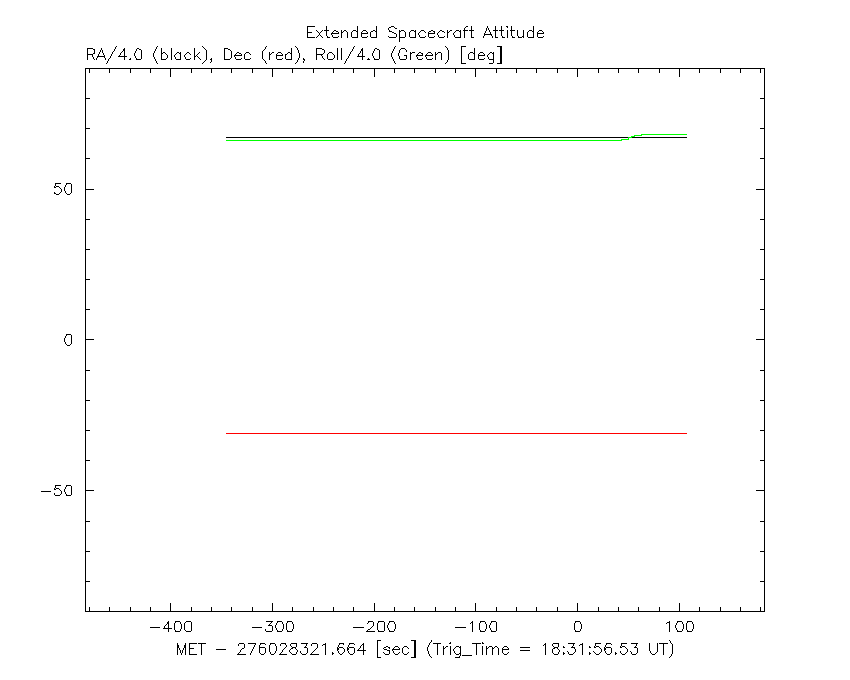

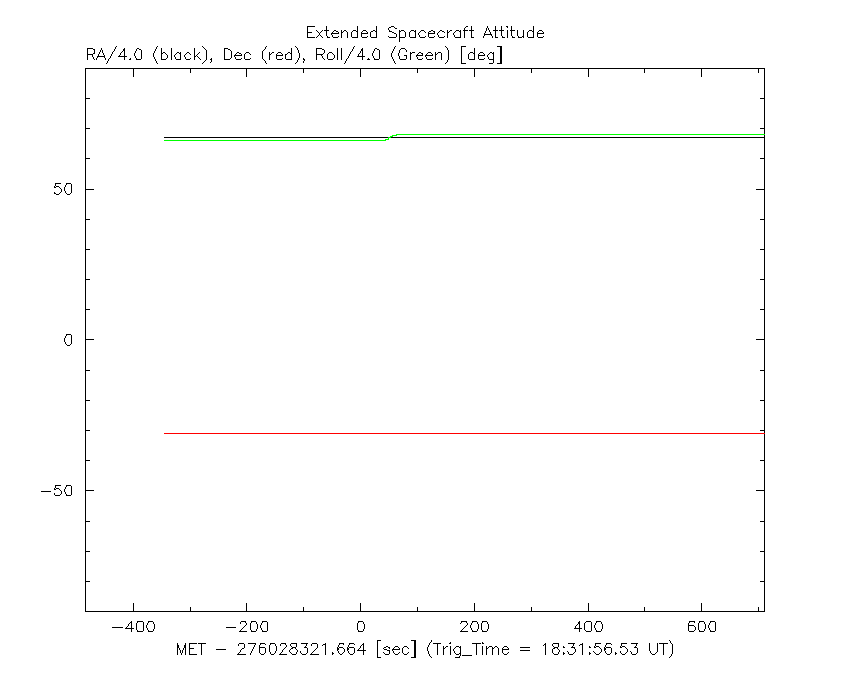

Extended TDRSS light curve and spacecraft attitude plot(s)

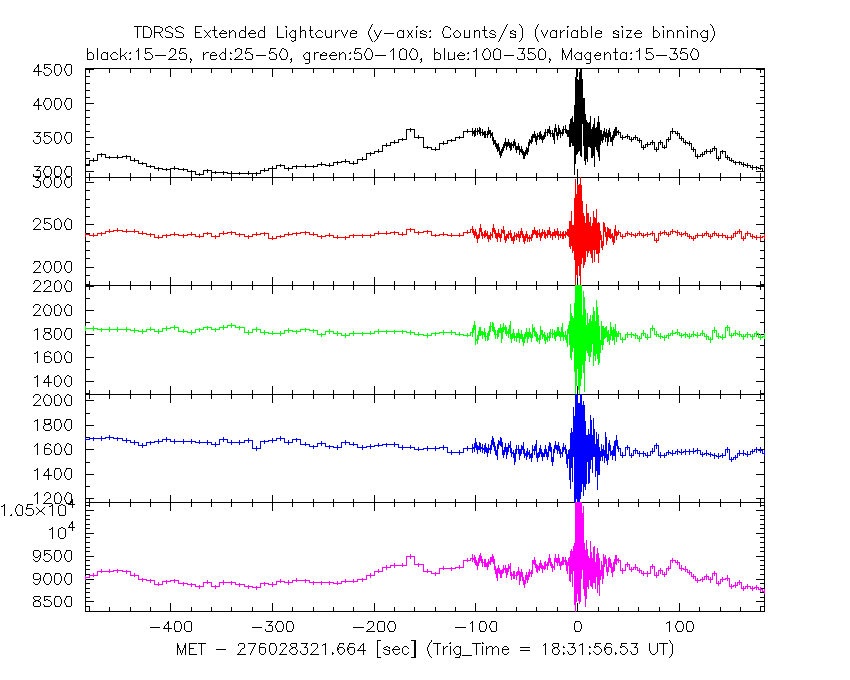

Extended TDRSS lc No.1

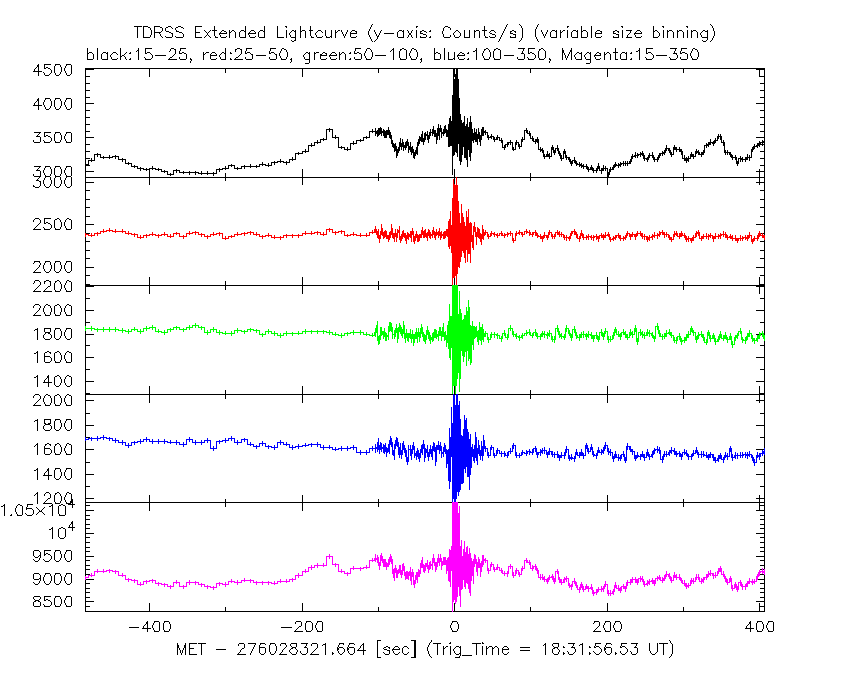

Extended TDRSS lc No.2

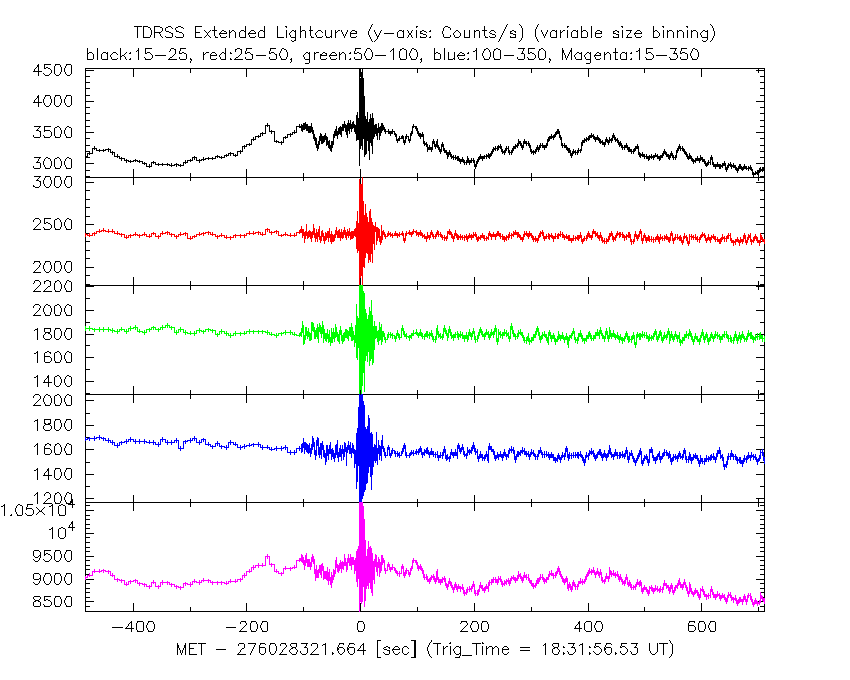

Extended TDRSS lc No.3

Extended TDRSS lc No.4

Plot creation:
Wed Sep 30 15:08:07 EDT 2009
