TDRSS lightcurve for Trigger=350922

Notes:

• 1) None of the TDRSS light curves are background subtracted.

GCN BAT Position Notice

GCN BAT Lightcurve Notice

TITLE:           GCN/SWIFT NOTICE
NOTICE_DATE:     Thu 30 Apr 09 05:11:55 UT
NOTICE_TYPE:     Swift-BAT GRB Lightcurve
TRIGGER_NUM:     350922,   Seg_Num: 0
GRB_RA:          149.435d {+09h 57m 45s} (J2000),
                 149.584d {+09h 58m 20s} (current),
                 148.638d {+09h 54m 33s} (1950)
GRB_DEC:         +47.549d {+47d 32' 55"} (J2000),
                 +47.504d {+47d 30' 14"} (current),
                 +47.787d {+47d 47' 15"} (1950)
GRB_DATE:        14951 TJD;   120 DOY;   09/04/30
GRB_TIME:        18363.17 SOD {05:06:03.17} UT
TRIGGER_INDEX:   261
GRB_PHI:         -27.03 [deg]
GRB_THETA:        29.38 [deg]
DELTA_TIME:      13.00 [sec]
TRIGGER_DUR:     2.048 [sec]
SOLN_STATUS:     0x883
RATE_SIGNIF:     26.28 [sigma]
IMAGE_SIGNIF:    5.98 [sigma]
LC_URL:          sw00350922000msb.lc

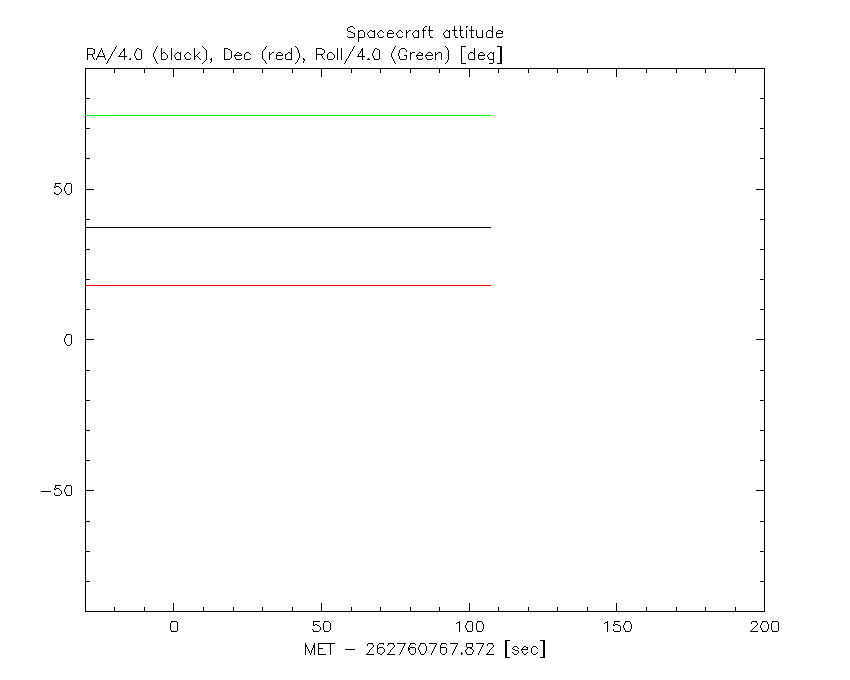

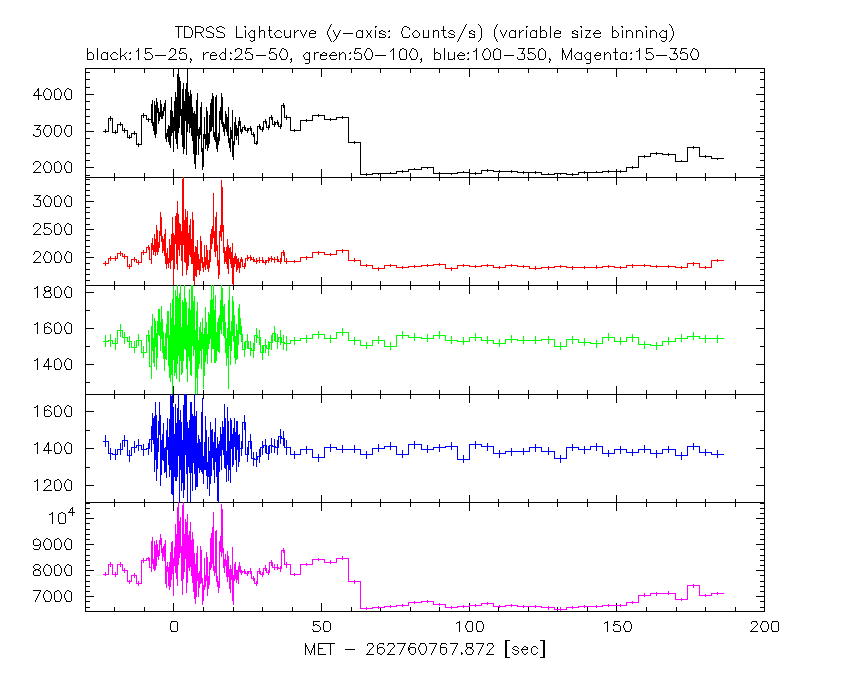

Initial TDRSS lightcurve and spacecraft attitude plot

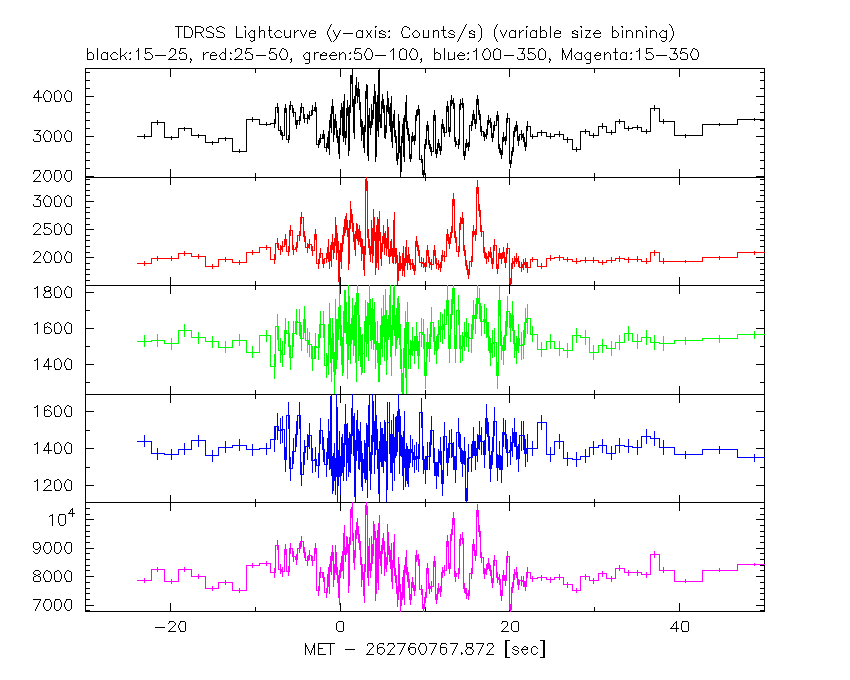

TDRSS lightcurve from T0-30 to T0+50 (zoom in)

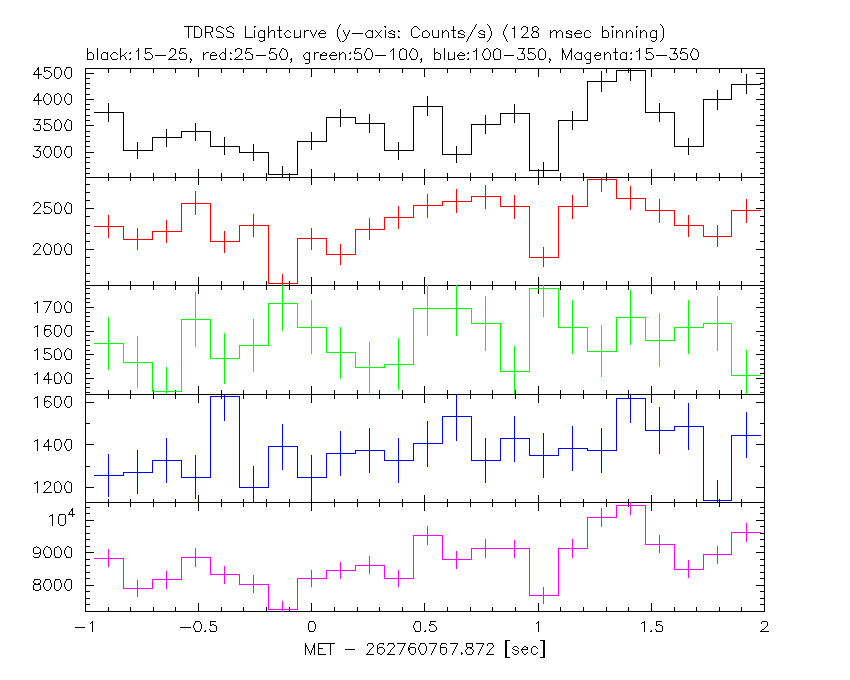

TDRSS light curve from T0-1 to T0+2 (More zoom in)

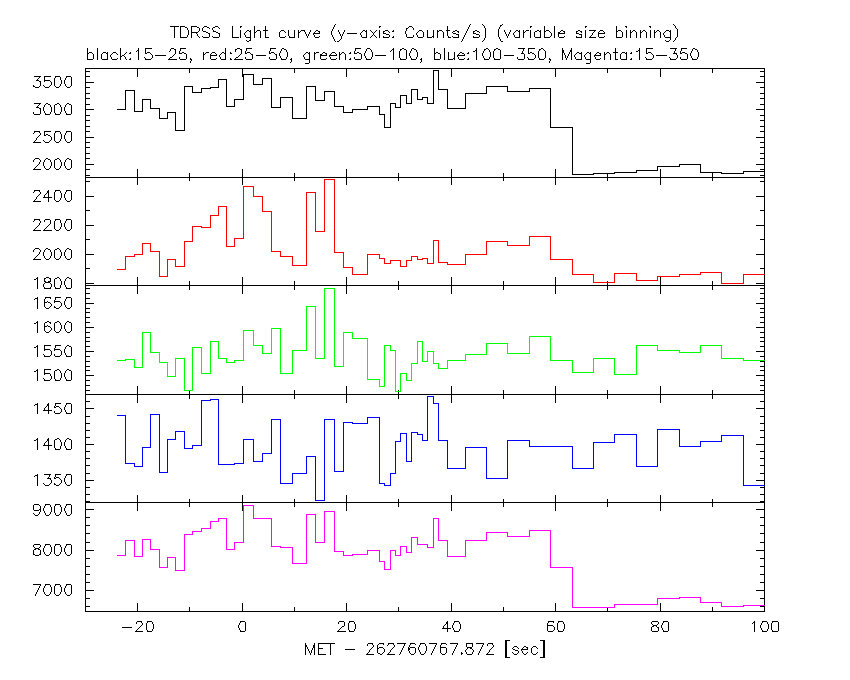

1.6s binned TDRSS light curve

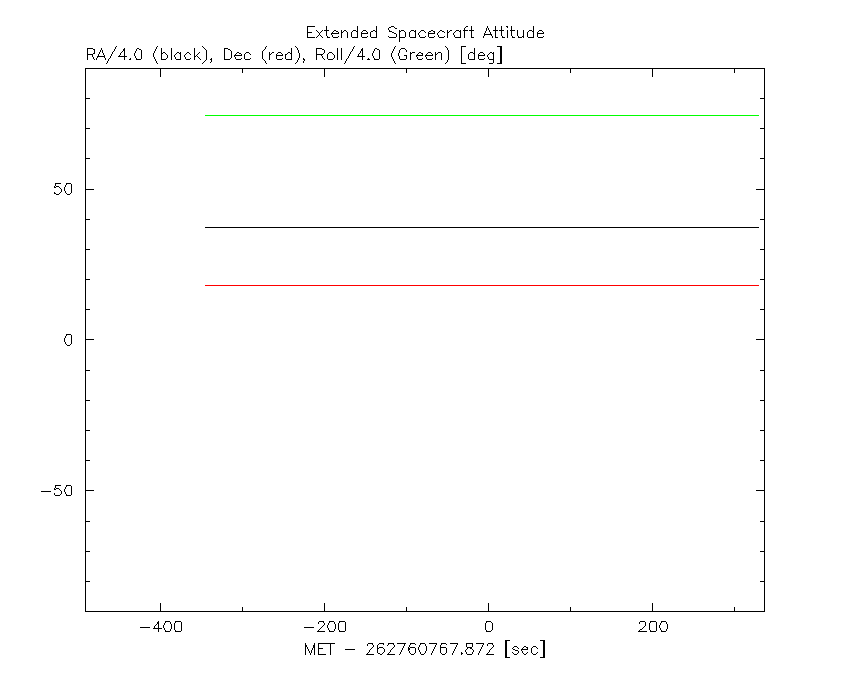

Extended TDRSS light curve and spacecraft attitude plot(s)

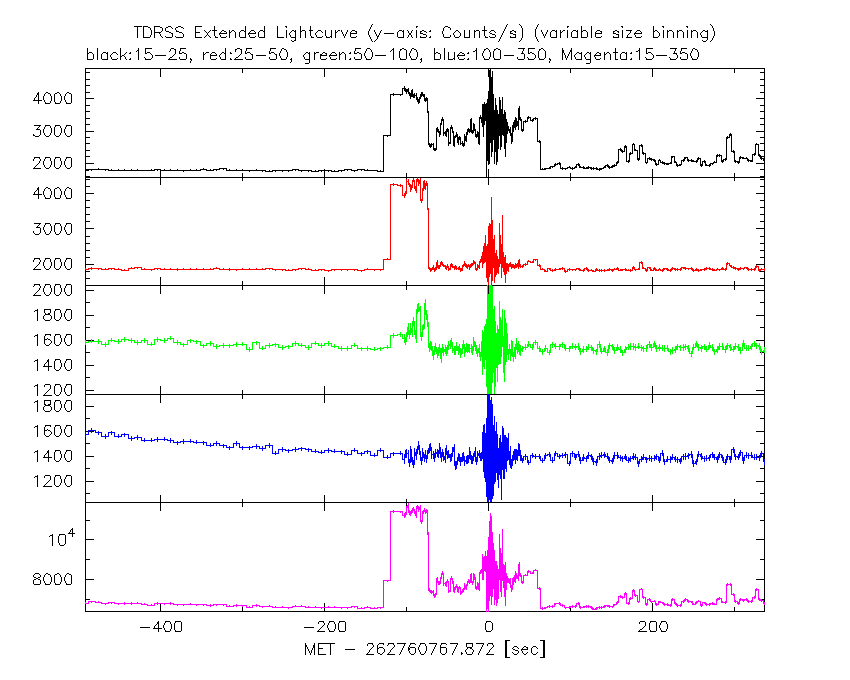

Extended TDRSS lc No.1

Plot creation:
Thu Apr 30 01:12:26 EDT 2009
